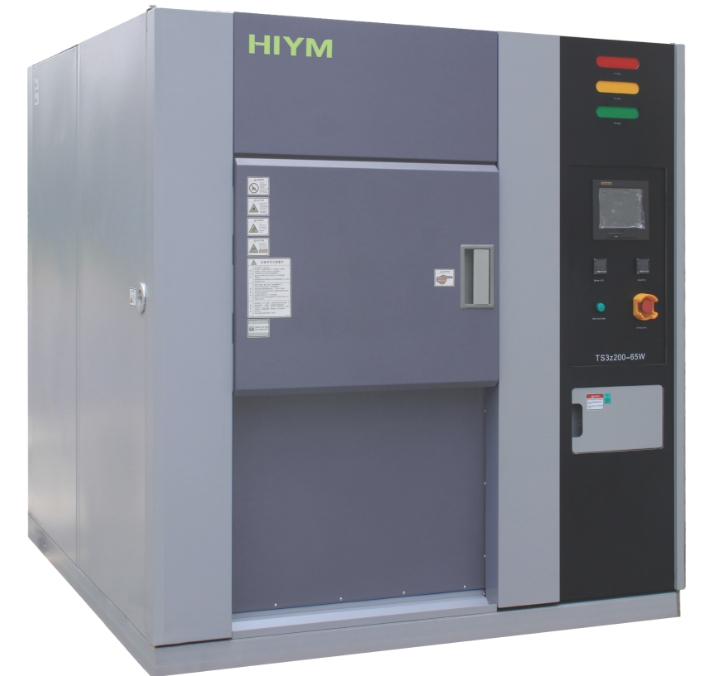

Cold and hot shock test box (three boxes)

model

TS3z-

70-40W

TS3z-

150-40W

TS3z-

200-40W

TS3z-

300-40W

TS3z-

70-55W

TS3z-

150-55W

TS3z-

200-55W

TS3z-

300-55W

TS3z-

70-65W

TS3z-

150-65W

TS3z-

200-65W

TS3z-

300-65W

Internal volume (L)

70

150

200

300

70

150

200

300

70

150

200

300

Inner box size (mm)

W

410

650

650

970

410

650

650

970

410

650

650

970

H

460

460

460

460

460

460

460

460

460

460

460

460

D

370

500

670

670

370

500

670

670

370

500

670

670

W

1470

1710

1710

2030

1470

1710

1710

1710

1470

1710

1710

2030

H

1860

1860

1860

1860

1860

1860

1860

1860

1860

1860

1860

1860

D

1870

1700

1870

1870

1870

1700

1870

1870

1870

1700

1870

1870

2.8

7.8

7.8

7.8

7.8

7.8

7.8

7.8

2.8

7.8

7.8

7.8

test method

Pneumatic door switches between high and low temperature zones

Preheating and pre cooling temperature

Preheating: (60-200) ℃ Pre cooling: (-80~0) ℃

Temperature recovery/switching时间

Recovery time: 5 minutes Switching time: ≤ 10 seconds

Temperature deviation (℃)

±2. 0℃

Exposure time

High temperature exposure: 30 minutes Low temperature exposure: 30 minutes

weight(kg)

980

1050

1400

1500

1400

1450

1480

1510

1430

1480

1680

1790

Maximum current A)

40

45

60

60

59

59

63

63

63

63

85

95

Power Supply (KW)

26

29

37

37

37

37

38

38

38

38

53

58

Circulating cooling water (t/h)

2.8

3

3

3

5

5

6

6

8

10

15

15

material

Inner box

Stainless steel plate SUS304

Outer box

Double sided galvanized sheet, surface treated with electrostatic spraying treatment

heat preservation

Fiber high-temperature cotton+polyurethane foam

actuator

High temperature tank

Heater: Nickel chromium alloy heating wire

High temperature impact fan, use axial flow fan for preheating

Low-temperature tank

Heater: Nickel alloy heating wire accumulator: Sheet aluminum plate

Fan: Low temperature resistant fan

Wind door drive

Pneumatic cylinder: used to drive the air door during high and low temperature, and normal temperature impact

Air compressor: purpose of gas supply

refrigeration system

Refrigeration method: low-noise piston compressor+binary cascade refrigeration

Refrigerant: Environmentally friendly refrigerants R404A, R23

Controller system

Touch screen+PLC

7.0 "or 10.0", 800x480 resolution, mixed output PLC

Operation mode

Program running, timed running

Setting method

Simplified Chinese+English, touch input

Program capacity

96 sets of programs, each consisting of 3 segments, capable of 32000 loops, with linking functionality

Setting Range

Adjust ± 5.0 ℃ based on the maximum range of equipment performance

display resolution

Temperature: 0.1 ℃, Time: s

sensor

PT100 (platinum resistance)

control mode

Low temperature cold balance+anti integral saturation PID+self-tuning

Curve recording

Equipped with live data storage function, the screen can slide to browse data and capture images

additional function

Fault alarm and cause handling prompt function: timed power on/off, power-off protection, user permission function

communication

Support RS485, LAN (network port), convenient for remote monitoring, data collection: IBM PC compatible machine, P II or above CPU, 128MB or above memory, Simplified Chinese version operating system

data acquisition

1. Equipped with a USB interface, it can save curve data for 3 months and download historical curves and data;

2 can replace the recorder, with built-in large storage space. It can save data for 3 months after 24 hours of continuous startup, with a sampling time of 1 minute. It can replace computer storage, and users can export historical data from a USB flash drive (time optional) to generate CSV format files;

3. Connect to PC (optional) - Record test data through computer monitoring software, display curves, and use PC as a remote terminal to achieve remote monitoring.

compressed air

Pressure: 0.5~0.7MPa Flow rate: 0.1 cubic/min

Circulating cooling water

Water pressure: 0.25~0.4MPa Water temperature: ≤ 30 ℃

Power supply (V)/(Hz)

AC voltage 380V ± 38V frequency 50Hz ± 0.5Hz three-phase four wire+grounding protection

Standard configuration

1 ф 50 test hole, 2 sets of sample racks, 4 casters

Safety device

Leakage switch, motor, compressor, phase sequence, over temperature and other protection functions
